Fixed Belt Conveyor

The Fixed Belt Conveyor is a universal series. It is a continuous conveying equipment with a cotton canvas, nylon, polyester canvas and wire rope conveyor belt as the traction component. It can be widely used in coal, metallurgy, mining, port, chemical industry, light industry, petroleum, machinery and other industries, conveying various kinds of bulk and packaged materials with a bulk density range of 500-2,500 kg/m3.

This belt conveyor has the advantages of large conveying capacity, high climbing capacity, low operating cost, easy maintenance, etc., furthermore, it is convenient to realize the automatic control of the delivery system.

The allowed size and weight of the conveying materials depends on the belt width, belt speed, groove angle, and inclination of the conveyor, as well as the frequency of conveying large bulk materials.

The applicable working environment temperature is generally between -40℃(-40℉) and 40℃(104℉). For those who requires a heat-resistant, cold-resistant, explosion-proof, flame-resistant, anti-corrosion, acid & alkaline-resistant, and/or water-proof working environment, protective measures should be taken accordingly.

The Fixed Belt Conveyor is designed by each part series. It can be customized, calculated, assembled into a complete conveyor according to different operational paths, terrains, and working conditions. Our manufacturer will produce and supply the Fixed Belt Conveyor(s) according to your needs. The designer is responsible for the performance parameters of the complete machine and the manufacturer is responsible for the performance and quality of the parts.

The conveyor should better be installed in the corridor. If installed in the open air, the driving device should be equipped with a protective cover.

This series of products can meet the requirements of horizontal, upward, downward, and other movements. It can also adopt the combination of convex, concave and straight line for diliverying.

Technical Parameters
Product Advantages
Product Features
Purpose
Service Conditions

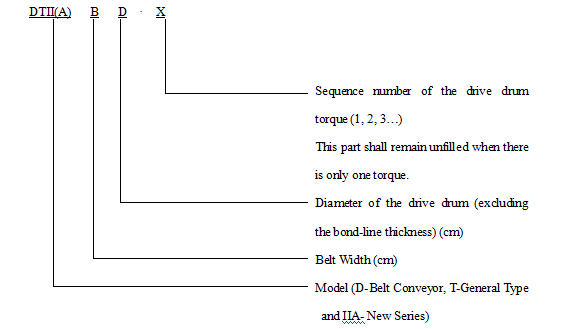

Description of Product Model

S/N	Belt Conveyor Specifications	Conveying Capacity (t/h)	Belt Speed (m/s)	Belt Width (mm)	Belt Type	Main Motor Power (kW)	Diameter of Drive Drum (mm)	Diameter of Idler (mm)
1	DSJ100/80/160YB	800	2.5	1000	PVC1000S	160	630	108
2	DSJ100/80/2×200YB	800	2.5	1000	PVC1000S	2×200	630	108
3	DSJ100/80/2x160YB	800	2.5	1000	PVC1000S	2×160	630	108
4	DSJ100/90/2×250YB	900	2.5	1000	PVC1000S	2×250	630	108
5	DSJ100/90/2×315YB	900	2.5	1000	PVC1000S	2×315	630	108
6	DSJ100/95/2×355YB	950	2.5	1000	PVC1000S	2×355	630	108
7	DSJ100/95/2×400YB	950	2.5	1000	PVC1000S	2×400	630	108
8	DSJ120/100/250YB	1000	3.5	1200	PVC1400S	250	830	133
9	DSJ120/110/2×200YB	1100	3.5	1200	PVC1400S	2×200	830	133
10	DSJ120/130/315YB	1300	3.5	1200	PVC1400S	315	830	133
11	DSJ120/140/355YB	1400	3.5	1200	PVC1400S	355	830	133
12	DSJ120/150/2×250YB	1500	3.5	1200	PVC1400S	2×250	830	133
13	DSJ120/150/2×315YB	1500	3.5	1200	PVC1400S	2×315	830	133
14	DSJ120/150/400YB	1500	3.5	1200	PVC1400S	400	830	133
15	DSJ120/170/2×355YB	1700	3.5	1200	PVC1400S	2×355	830	133
16	DSJ120/180/2×400YB	1800	3.5	1200	PVC1400S	2×400	830	133
17	DSJ120/70/200YB	700	3.5	1200	PVC1400S	200	830	133
18	DSJ80/40/55YB	400	2	800	PVC800S	55	630	108
19	DSJ80/48/2×55YB	480	2	800	PVC800S	2×55	630	108
20	DTC80/15/200SYB	150	2	800	PVC1400S	200	830	108
21	DTC80/15/250SYB	150	2	800	PVC1400S	250	830	108
22	DTL100/100/2×355YB	1000	2.5	1000	PVC1400S	2×355	830	108
23	DTL100/120/2×400YB	1200	2.5	1000	PVC1400S	2×400	830	108
24	DTL100/70/2×250YB	700	2.5	1000	PVC1400S	2×250	830mm	108
25	DTL100/80/2×315YB	800	2.5	1000	PVC1400S	2×315	830mm	108
26	DTL120/110/2×355SYB	1100	3.5	1200	PVC1400S	2×355	1000mm	133
27	DTL120/130/2×400SYB	1300	3.5	1200	PVC1400S	2×400	1000mm	133

Improve drive efficiency and reduce power consumption. In the traditional drive system, the Y Series Asynchronous Motor is rated as IE1- Standard Efficiency; whereas in this new drive system, the Permanent Magnet Synchronous Motor is rated as IE4-Super Premium Efficiency. By using an IE4 rated Permanent Magnet Synchronous Motor, a DSJ80 belt conveyor can save up to 100,000 kWh per year compared to the same belt conveyor with an IE1 Y Series Asynchronous Motor.
The new system features a soft starter and is maintenance-free. It also uses a VFD to control the starting process, which allows the system to be up and running in a slow and uniform way. In addition, compared with the traditional system, the new system eliminates the hydraulic coupler, speed reducer, and synchronous gear, which could save substantial maintenance costs.
1. Smooth and steady conveying. No relative movement occurs between materials and the conveyor belt, so it can avoid materials from being damaged during conveying.
2. Lower noise. Right for relatively quiet working environment.
3. Simple structure, maintenance-friendly.
4. Less energy consumption and lower operating costs.
The Fixed Belt Conveyor is a universal series. It is a continuous conveying equipment with cotton canvas, nylon, polyester canvas and wire rope core conveyor belt as traction components. It can be widely used in coal, metallurgy, mining, port, chemical industry, light industry, petroleum, machinery and other industries, conveying various kinds of bulk materials and integrated articles with bulk density of 500-2,500 kg/m3.
Convey a variety of bulk and packaged materials with a density range of 500 to 2,500 kg/m3.
The applicable working environment temperature is generally between -40℃(-40℉) and 40℃(104℉). For those who require a heat-resistant, cold-resistant, anti-corrosion, explosion-proof, and/or flame-resistant working environment, a special rubber conveyor belt should be used and protective measures should be taken accordingly. Different conveyor belts have different required temperature to convey materials. The temperature of the conveying materials should not be higher than 60℃(140℉) when using a standard conveyor; the temperature of the conveying materials can reach up to 120℃(248℉) when using a heat-resistant rubber belt conveyor; when conveying acidic, alkaline, oily materials and/or materials with organic solvent nature, it is necessary to choose an oil-resistant, acid-resistant, and alkali-resistant rubber or plastic belt conveyor.
